64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

Product Categories
Weifang Huaxin Diesel Engine Co.,Ltd.
Contact Now

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

  • 1
  • 2
  • 3

Brand Name : Cummins

Model Number : HX-80GF

Certification : CE

Place of Origin : China

MOQ : 1

Price : 10000

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50 units per month

Delivery Time : In 7 days after receive the deposit

Packaging Details : Export plywood

Prime Power : 64KW/80KVA

Current : 115A

Voltage : 400/230 220/110V

Type : 3 phase 4 wire

Standby power : 68KW/85KVA

Frequency : 50/60HZ

Speed : 1500/1800rpm

Rated current : 120A

Output type : AC three phase

Rated power : 64KW/80KVA

Fuel : Diesel

Start method : Electric start

Engine brand : Cummins

Engine type : In line

Contact Now

Diesel Engine Generator Set|Cummins Diesel Engine Generator Set|64KW/80kva Cummins Diesel Generator Power By 6BT5.9-G2



64KW/80KVA Cummins diesel generator set specification

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

Cummins diesel generator set 64KW/80KVA
Diesel Generator Genset Model HC-80GF
  Rated Frequency 50Hz
  Power Factor 0.8
  Rated Voltage 400/230V or as per your requirement
  Rated Power(KW/KVA) 64/80
  Standby Power(KW/KVA) 68/85
  Phase/Wire 3-phase,4-wire
  Open type Overall Size(mm) 2300×1000×1800
  Open type Weight(kg) 1200
Diesel Engine Model 6BT5.9-G2
  Type water-cooled,inline,4-stroke,direct injection,wet cylinder liner,1500rpm
  Rated Power(KW/KVA) 92/115
  Intake Type Turbocharged
  No. of Cylinder 6
  Bore×Stroke(mm) 102×120
  Piston Speed(m/s) 7.9
  Compression Ratio 17.3:1
  Noise Level(dBA) ≤100
  Exhaust Temperature(℃) 84.3
  Lube Oil Capacity(L) 20
  Rated Fuel Consumption(L/h) 14.5
  Displacement(L) 5.9
  Governing Type Electrical
Alternator Model UCI 224G (STAMFORD)
  Rated Power(KW/KVA) 68/85
  Excitation Type Brushless
  Insulation Class H


Diesel generator structure chart

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

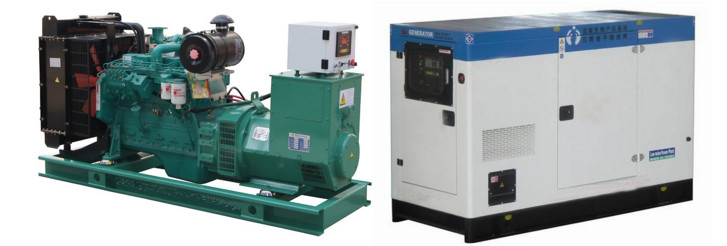

Silent canopy

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

Export package

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

Standby spare parts

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set



Installation draft

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set

OEM partner

64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set



64KW Diesel Engine Generator Set 80kva Cummins Diesel Generator Power By 6BT5.9-G2 Cummins Diesel Engine Generator Set
